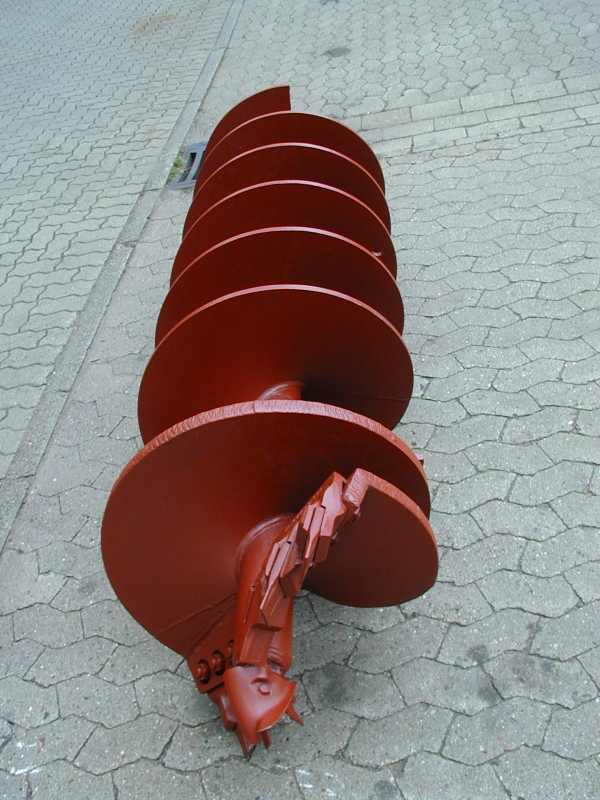

Flight auger

Nordmeyer flight augers are manufactured, as almost all Nordmeyer drilling tools, in our factory in Peine/Germany. The manufacturing process is subject to continuous quality controls enabling us to guarantee availability and invariable good quality of our tools.

Flight auger executions

• hard faced flight edge
• one-edged
• double-edged
• with various teeth and bits
• reinforced

Standard dimensions

• Flight auger
  cutting dia. 110mm x 1m resp. 2m with hex socket 50 mm or 41 mm
• Flight auger
  cutting dia. 135mm x 1m resp. 2m with hex socket 50 mm or 41 mm
• Flight auger
  cutting dia. 185mm x 1m resp. 2m with hex socket 50 mm or 41 mm
• Flight auger
  cutting dia. 230mm x 1m resp. 2m with hex socket 50 mm or 41 mm
• Flight auger
  cutting dia. 275mm x 1m resp. 2m with hex socket 50 mm or 41 mm
• Flight auger
  cutting dia. 320mm x 1m resp. 2m with hex socket 50 mm or 41 mm
• Flight auger
  cutting dia. 370mm x 1m resp. 2m with hex socket 50 mm or 41 mm
• Flight auger
  cutting dia. 425mm x 1m resp. 2m with hex socket 50 mm or 41 mm

Other dimensions on request
